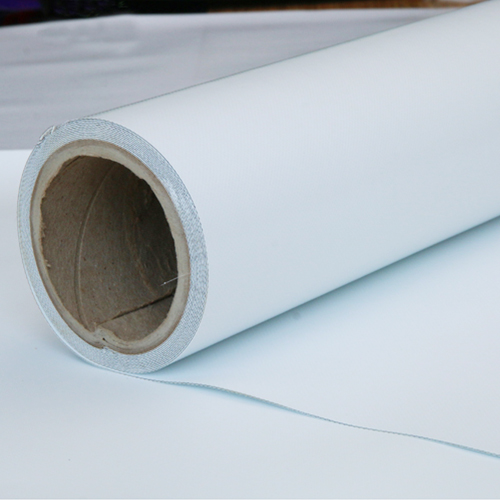

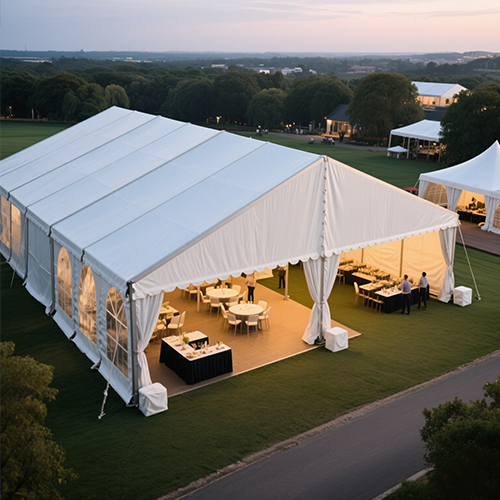

Blockout tent fabric is general used to marquee tent,the top fabric is used by 850gsm blockout fabric or 750gsm blockout PVC fabric.
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn | warp: | dtex | 1000 |
| weft: | dtex | 1000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 9 |
| weft: | threads/inch | 9 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 210 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 850 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 3000 |
| weft: | N/5cm | 2800 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 350 |
| weft: | N | 280 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 150 | |
| 11 | Adhesion (Welding) | kg/5cm | 13 | |
| 12 | FR | B2/B1/M2/M1/NFPA701 | ||
| 13 | UV Stability | yes | ||
| 14 | Surface treatment | Acrylic/PVDF | ||
