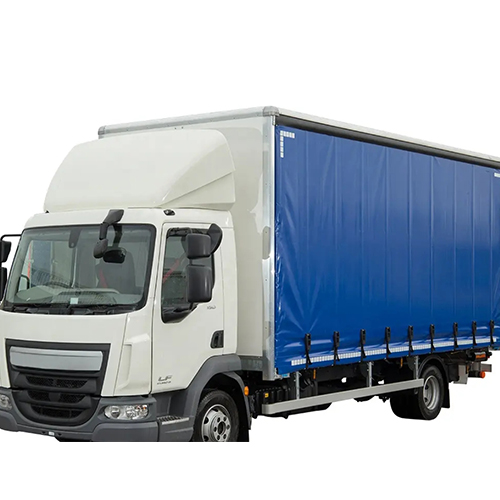

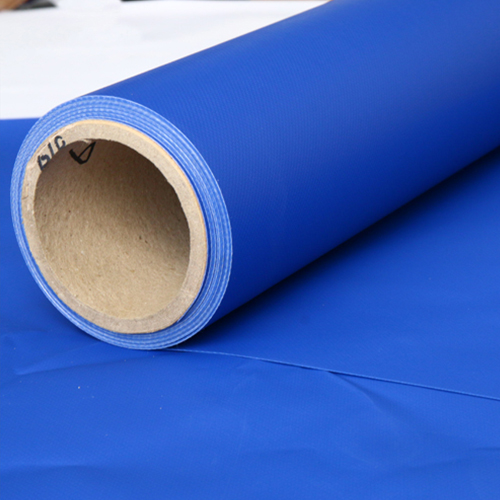

Truck side curtain, also known as side curtain fabric, is a specialized type of flexible covering used on trucks and trailers. It is designed to offer a balance of functionality, durability, and convenience in the transportation industry. The most popular spec of side curtain fabric is 900gsm.
Product Character:
1.Much Higher Tension, tear strength and adhesion strength.
2.One or two sides acrylic lacquering.
3.Good peeling strength for hot-air and high-frequence welding.
4.Mildew proof and anti-uv
5.Sun-proof index 5,color fastness more than 5
6.Flame with NFPA701,B1,B2,M1.M2
7.Max seamless width up to 3.30m
8.we can make any colors according to RAL,PANTON
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn(Panama) | warp: | dtex | 2000 |
| weft: | dtex | 2000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 12 |
| weft: | threads/inch | 12 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 263 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 900 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 4000 |
| weft: | N/5cm | 3800 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 450 |
| weft: | N | 400 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 180 | |
| 11 | Adhesion (Welding) | kg/5cm | 15 | |
| 12 | FR | B2/B1/M2/M1/NFPA701 | ||
| 13 | UV Stability | yes | ||
| 14 | Surface treatment | Acrylic/PVDF | ||
