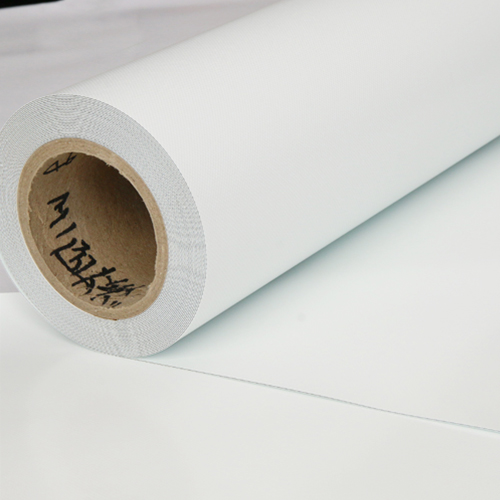

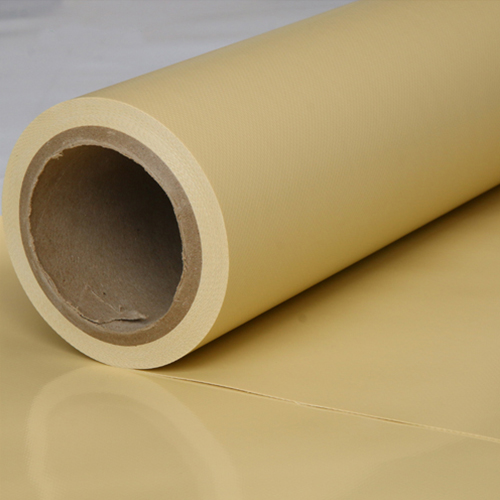

Laminated PVC fabric is a polyester fabric laminated or coated with PVC. It can be used to make truck covers, tent, awning and so on. It is 100% waterproof. It has various weight from 300gsm to 2000gsm . Laminated PVC fabric is resistant to abrasions,, oil and midlew.
Product Character:
1.Much Higher Tension, tear strength and adhesion strength.
2. Two sides acrylic or PVDF lacquering.
3.Good peeling strength for hot-air and high-frequence welding.
4.Hot and cold of whether resistance
5.Mildew proof and anti-uv
6.Waterproof,anti-leak,and anti cold
7.Sun-proof index 5,color fastness more than 5
8.Flame with NFPA701,B1,B2,M1.M2,DIN75200
9.It can reach to EN71-3 and REACH stand.
10.Max seamless width up to 5.10m(201'')
11.we can make any color according to RAL,PANTON
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn | warp: | dtex | 1000 |
| weft: | dtex | 1000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 8 |
| weft: | threads/inch | 8 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 610 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 2500 |
| weft: | N/5cm | 2300 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 250 |
| weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 130 | |
| 11 | Adhesion (Welding) | kg/5cm | 10 | |
| 12 | FR | B2/B1/M2/M1/NFPA701 | ||
| 13 | UV Stability | yes | ||
| 14 | Surface treatment | Acrylic/PVDF | ||
