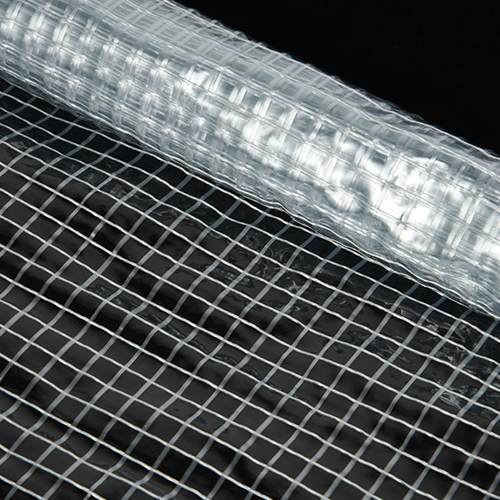

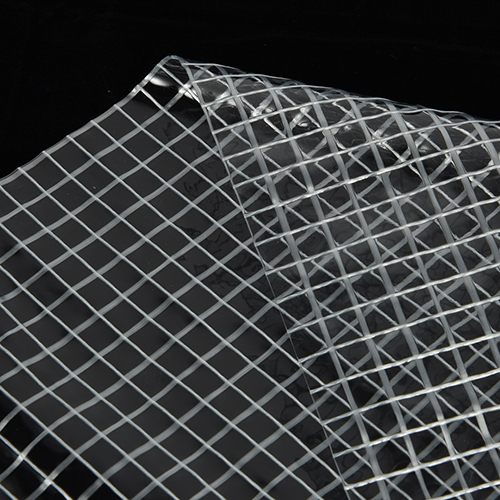

This mesh is crafted by integrating a polyvinyl chloride (PVC) film with a supporting mesh structure, typically made of polyester or other synthetic fibers. The PVC film, known for its clarity, is laminated onto the mesh base. This construction not only provides the transparency that is characteristic of the material but also enhances its durability and strength. For example, the high - density woven polyethylene base fabric in some PVC transparent meshes, combined with a super - clear PVC film in a three - layer laminated structure, contributes to its robust nature.The general use is tents, construction and Agriculture,etc.. The most popular specs are 340gsm and 500gs,etc..
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | |||
| 3 | Count of Yarn | warp: | dtex | 1000 |
| weft: | dtex | 1000 | ||
| 4 | Setting/ Number of ThreadsDIN EN 1049 | warp: | threads/inch | 3 |
| weft: | threads/inch | 3 | ||
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 30 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 340 | |
| 8 | Tensile Strength DIN 53354 | warp: | N/5cm | 600 |
| weft: | N/5cm | 500 | ||
| 9 | Tear Resistance DIN 53363 | warp: | N | 120 |
| weft: | N | 100 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 60 | |
| 11 | Adhesion (Welding) | kg/5cm | 5 | |
